X5

Now with Speakon + binding posts!

RoHS compliant version available

X1's front panel - Click to enlarge picture ^

	Both channels driven:	Each channel:	Power per speaker:
2 Ohm	1200 w RMS	600 w RMS	8x150 w RMS
4 Ohm	800 w RMS	400 w RMS	4x200 w RMS
8 Ohm	500 w RMS	250 w RMS	2x250 w RMS

For specifications using EIA standards, click here.
.
.

XD's front panel - Click to enlarge picture ^

	Both channels driven:	Each channel:	Power per speaker:
2 Ohm	3600 w RMS	1800 w RMS	8x450 w RMS
4 Ohm	2000 w RMS	1000 w RMS	4x500 w RMS
8 Ohm	1160 w RMS	580 w RMS	2x580 w RMS

For specifications using EIA standards, click here.
.
.

X3's front panel - Click to enlarge picture ^

	Both channels driven:	Each channel:	Power per speaker:
2 Ohm	3600 w RMS	1800 w RMS	8x450 w RMS
4 Ohm	2240 w RMS	1120 w RMS	4x560 w RMS
8 Ohm	1280 w RMS	640 w RMS	2x640 w RMS

For specifications using EIA standards, click here.
.
.

.X5's front panel - Click to enlarge picture ^

	Both channels driven:	Each channel:	Power per speaker:
2 Ohm	5600 w RMS	2800 w RMS	8x700 w RMS
4 Ohm	3500 w RMS	1750 w RMS	4x875 w RMS
8 Ohm	2000 w RMS	1000 w RMS	2x1000 w RMS

For specifications using EIA standards, click here.
.
.

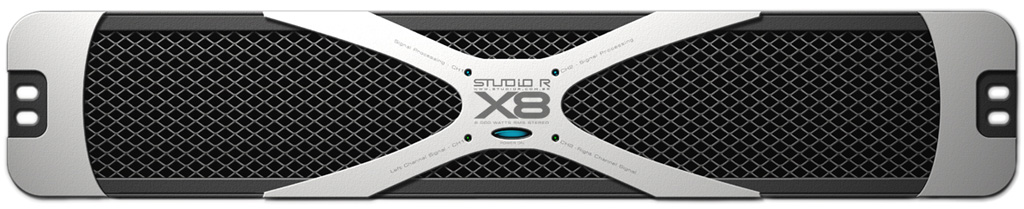

.X8's front panel - Click to enlarge picture ^

	Both channels driven:	Each channel:	Power per speaker:
2 Ohm	8000 w RMS	4000 w RMS	8x1000 w RMS
4 Ohm	4700 w RMS	2350 w RMS	4x1175 w RMS
8 Ohm	2600 w RMS	1300 w RMS	2x1300 w RMS

.For specifications using EIA standards, click here.

.
NEW: 13.200 watts EIA* (11.000 watts IEC)

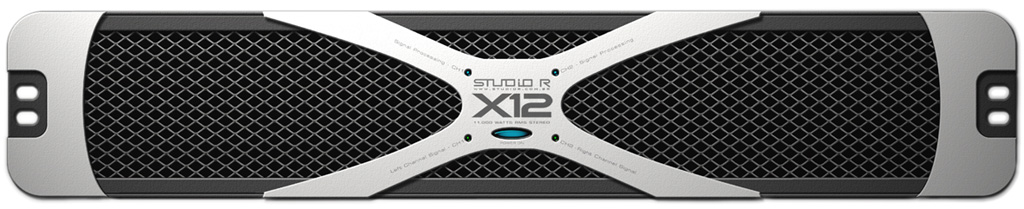

.X12's front panel - Click to enlarge picture ^

	Both channels driven:	Each channel:	Power per speaker:
2 Ohm	11000 w RMS	5500 w RMS	8x1375 w RMS
4 Ohm	6580 w RMS	3290 w RMS	4x1645 w RMS
8 Ohm	3640 w RMS	1820 w RMS	2x1820 w RMS

.For specifications using EIA standards, click here.
.

Main Features - X1, XD, X3, X5, X8 and X12:

Dual action Opto-limiter:
Controls maximum power output,
Controls maximum distortion,
Self-adjusts according to AC variations,
Avoids clipping.
Class AB, AB variable and H:
X1 and XD - High polarization Class AB.
- Reference amplifier quality,
- THD 10x lower than usual,
- Extremelly low noise ratios.
X3 and X5 - Class AB variable
- Suitable for high or low frequencies,
- Suitable for any loudspeaker,
- Very low distortion from 20Hz to 20kHz.
X8 and X12- Class H MOSFET:
- High-precision switching,
- Low distortion,
- Optimized for low frequencies.
Low impedances handling (1.3 Ohm):
Perfect for use with up to 8 speakers,
Designed for high or low impedance speakers.
Oversized power supply:
Constant work, even on highly variable AC.
Full protection system:
Ensures amplifier's integrity, avoiding:
Overheat, short-circuit, incorrect loads, etc.
Magnetic activation circuit breaker:
Eliminates the need for line fuses.
DS Point sensitivity (Digital Setup):
Selectable input sensitivity,
Proper adjustment for digital processors.
3 year warranty:
Individually tested with 4 cicles burn-in,
(Valid for products sold in Brazil.
Check with your dealer for local warranty).
...

Weight / Dimensions (Exp. Versions):

X1 to X5: 15,5Kg (34lbs) - 88x483x370mm
X8: 16Kg (35lbs) - 88x483x370mm
X12: 17,5Kg (38,5lbs) - 88x483x440mm

Downloads	...X1 Data Sheet..	...Manuals:.. X Series Owner's Manual
	...XD Data Sheet..
	...X3 Data Sheet..
	...X5 Data Sheet..
	...X8 Data Sheet..
	...X12 Data Sheet..

.
.

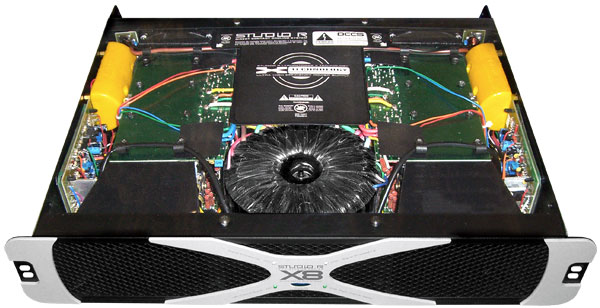

Click above to take a closer look inside ^
.
.

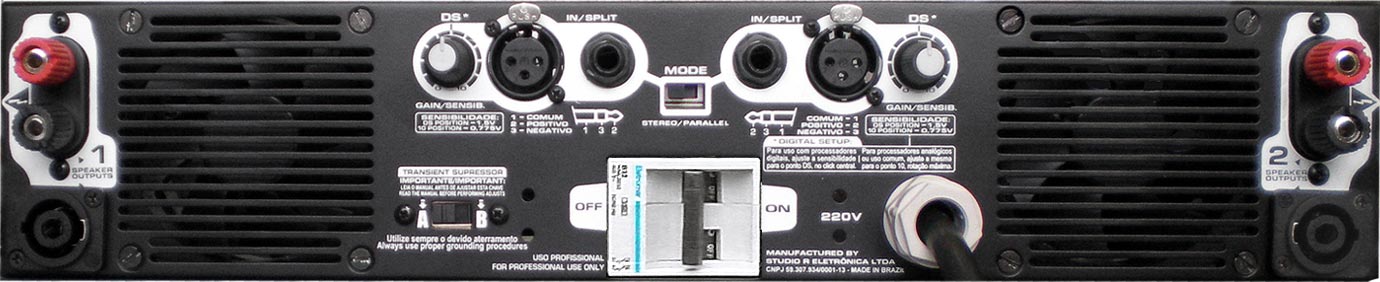

Rear panel: Click to enlarge picture v

..(*) The EIA values were measured using the same EIAJ methods used by many famous digital amplifier brands. They are usefull for comparison purposes. The regular specifications uses the traditional IEC standarts and measuring methods.

Specifications - X1, X3, X5, X8 and X12:

Operating class:
X1-XD: Class AB (high polarization current)
X3 and X5: Class AB variable.
X8 and X12: High-precision Class H MOSFET.

T.H.D. (1KHz@1/2 rated powerl):
X1: 0,015%-2 Ohm, 0,008%,-4 Ohm, 0,005%-8 Ohm.
XD: 0,02%-2 Ohm, 0,015%,-4 Ohm, 0,008%-8 Ohm.
X3 - X5: 0.06%-2 Ohm, 0.03%,-4 Ohm, 0.01%-8 Ohm.
X8 - X12: 0.1%-2 Ohm, 0.08%,-4 Ohm, 0.06%-8 Ohm.

Frequency response:
20 Hz to 20 KHz, +/- 0.5 dB

Damping factor (8 Ohm):
> 2000:1 @ 30 Hz. - 300 Hz, >400:1 @ 1 kHz
and better than 1000 up to 10kHz for X1
and better than 800 up to 10kHz for XD

Hum and Noise:
X1:
-105 dB "A" weighted referenced to rated power @ 8 Ohm.
XD to X12:
-100 dB "A" weighted referenced to rated power @ 8 Ohm

Crosstalk:
X1-XD: >-80dB@1kHz-CMRR better than -85dB@1kHz.
XD to X12: > -72 dB @ 1 kHz at rated power @ 8 Ohm

Slew rate:
X1: > 25 V/us.
XD: >35 V/us
X3 and X5: > 16 V/us.
X8 and X12: > 20 V/us.

Input sensitivity (selectable) - Regular Version:
X1: - 1 V +/- 2% for 1 kHz 2 Ohm rated power.
- 2 V +/- 3% for 1 kHz 2 Ohm rated power (DS Point).
XD to X8: - (x96) 0.775 V +/- 2% for 1 kHz 2 Ohm rated power.
- (x48) 1.55 V +/- 3% for 1 kHz 2 Ohm rated power (DS Point).
X12: - (x58) 0.9 V +/- 2% for 1 kHz 2 Ohm rated power.
- (x116) 1.8 V +/- 3% for 1 kHz 2 Ohm rated power (DS Point).

Input sensitivity (selectable) - Euro Version:
- 26dB / 20x (DS Point)
- 32dB / 40x (10 Position)
Valid for all models.

Input impedance:
10 K Ohm balanced.

Cooling:
Four 80mm high output DC fans.

Controls (rear panel):
Two gain control with Digital Setup point, one mode switch
and one power switch.

Indicators:
power: 1 blue LED.
signal: 2 green LEDS.
processing: 2 blue LEDS.

Protection:
Soft-Start, thermal, turn-on bursts, subsonic
magnetic circuit breaker, incorrect loads, DC.

Power:
220 V AC and 120 V AC versions
(consult for alternative voltages)

Precise consumption:
X1-XD:1.55 times the output power used.
X3 and X5: 1.35 times the output power used.
X8 and X12:1.3 times the output power used.

Dimensions:
X1 to X8: 88,9 mm x 483 mm x 325 mm
X12: 88,9 mm x 483 mm x 440 mm
(+45mm for rear support ears and connectors)

Net weight / Gross weight (export):
X1 to X5: 15,5 kg / 21 kg (34 lbs / 47 lbs)
X8: 16 kg / 21.5 kg (35 lbs / 47.4 lbs)
X12: 17,5 kg / 23 kg (38,5 lbs / 50.5 lbs)

Rated power (IEC) and max. consumption:
X1 - 1200 W, 220 V, 10 A (3,3A EIA)
XD - 3600 W, 220 V, 22 A (10,8A EIA)
X3 - 3600 W, 220 V, 21 A (7A EIA)
X5 - 5600 W, 220 V, 32 A (10,6A EIA)
X8 - 8000 W, 220 V, 50 A (16,7A EIA)
X12 - 11000 W, 220 V, 68 A (19,3A EIA)
(consult for alternative voltages)

.
Now with Speakon connectors + binding posts!
For specifications using EIA "33/66", click here.
